CWDM/DWDM Hybrid Solution, 8 Channels C53-C60, with Expansion Port, LC/UPC, Dual Fiber DWDM Mux Demux, FMU Plug-in Module

Name: CWDM/DWDM Hybrid Solution, 8 Channels C53-C60, with Expansion Port, LC/UPC, Dual Fiber DWDM Mux Demux, FMU Plug-in Module
Brand: FLYPRO
SKU: 305682
Price: 412.39 EUR
Availability: InStock
Rating: 0.0 (0 reviews)

PN:DT085360E #305682

412,39 €

PREISBRECHEN - Je mehr Sie kaufen, desto mehr sparen Sie

Menge

100+

500+

1000+

Preis

404,14 €

391,77 €

379,40 €

Verfügbarkeit: Auf Lager

Fragen Sie bei uns an

Menge:

Käuferschutz

Bezahlverfahren:

Überblick
Bewertungen

8ch DWDM Mux/Demux Plug-in Module, 100GHz ITU Grid, C53-C60, Duplex LC/UPC

DWDM Mux Demux is usually used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm). It's protocol transparent and suit applications including 10/1G Ethernet, SDH/SONET, 16/8/4/2/1G Fibre Channel, FTTx and CATV.

Product Details

Wavelength	8 channels C53-C60	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Insertion Loss	≤ 3.2dB (with connectors and adapters)
Passband Ripple	≤ 0.5dB	Insertion Loss @ Exp	≤ 2.9dB (with connectors and adapters)
Adjacent Channel Isolation	≥ 30dB	Non-adjacent Channel	≥ 35dB
Return Loss	≥ 45dB	Directivity	≥ 50dB
Polarization Dependent Loss	≤ 0.2dB	Polarization Mode Dispersion	≤ 0.1ps
Temperature	Operating -5°C~ +75°C Storage -40°C~+85°C	Dimensions (HxWxD)	1.73"x8.35"x10.04" (44x212x255mm)

Quality Assurance

Excellent quality is the foundation of FLYPRO' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Adavantages

Keep In Stock

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High Stability

Product Highlights

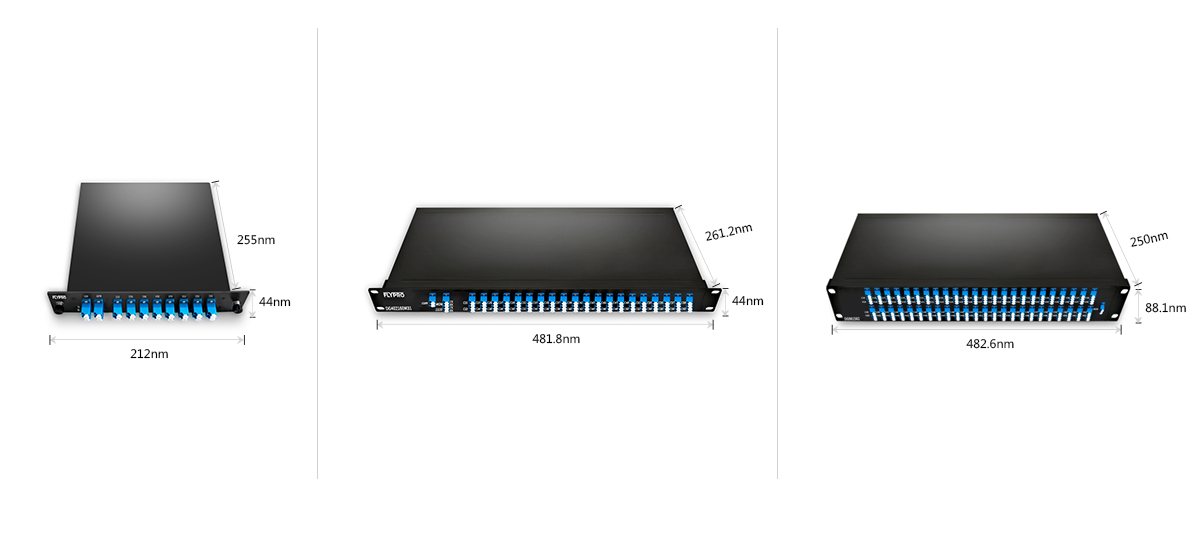

Common size

Small size, easy to install and easy to use. Completely passive, no power supply, no cooling required. Fully compatible with all ITU-T DWDM optics.

A Rugged and Cost-Effective Designed DWDM Mux/Demux

Flexible support

Easy to fix and easy to install

Clear Coding for DWDM

Each channel is marked with band parameter for easy identification, ensuring fast and accurate installation.

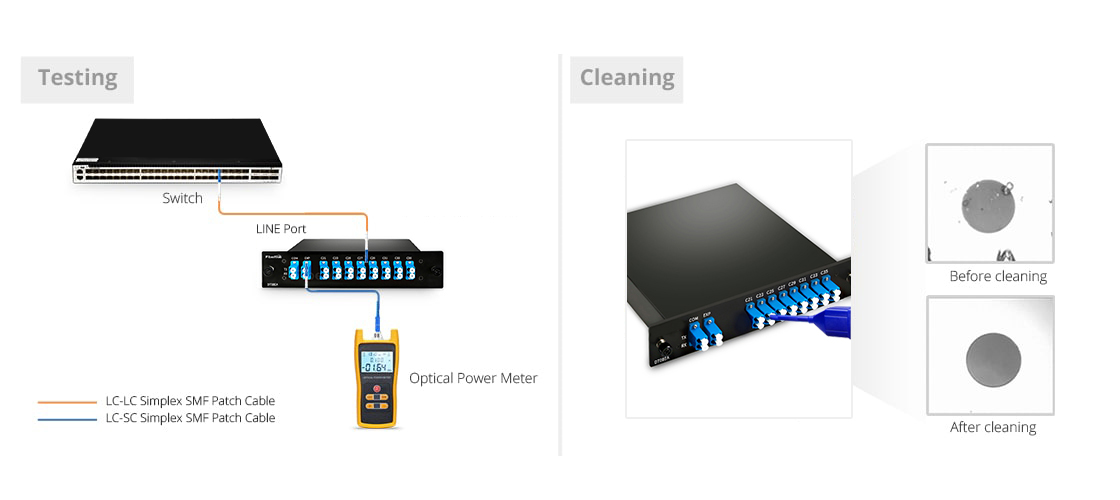

Simple to Test and Maintenance

Taking just several seconds to complete all loss or power measurements and easy to interpret test results with minimal navigation.Fiber Optic Cleaning is a essential accessory to maintain and guarantee good quality of fiber optic connection.
