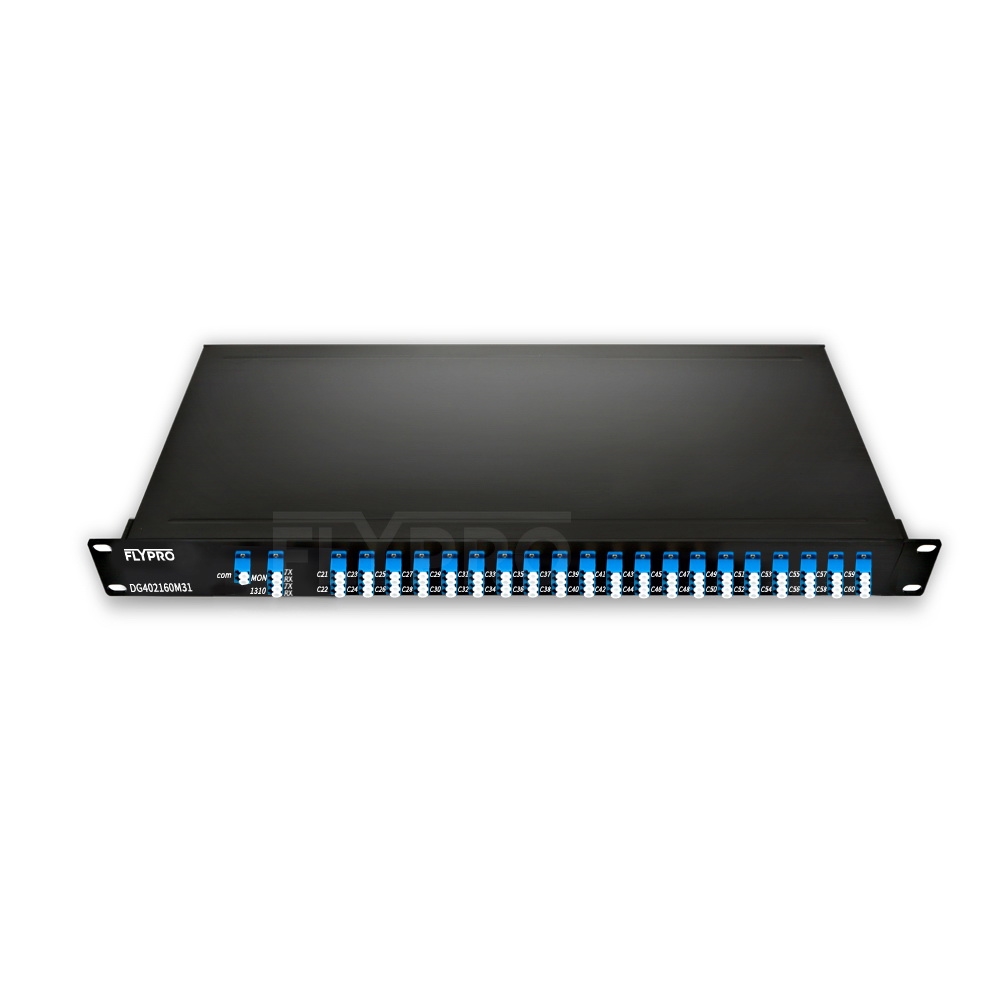

40 Channels C21-C60 AAWG (Gaussian), with 1310nm Port and Monitor Port, LC/UPC, Dual Fiber DWDM Mux Demux, FMU 1U Rack Mount

Name: 40 Channels C21-C60 AAWG (Gaussian), with 1310nm Port and Monitor Port, LC/UPC, Dual Fiber DWDM Mux Demux, FMU 1U Rack Mount
Brand: FLYPRO
SKU: 358876
Price: 1358.99 USD
Availability: InStock
Rating: 0.0 (0 reviews)

PN: DG402160M31

SKU: 358876

#5859

US$1,358.99

Availability: In stock

30 Days Free Refund & Return

Lifetime Technical Support

Payment method

Inquire with us

Qty:

Overview
Reviews

40ch C21-C60 Dual Fiber DWDM Mux Demux, AAWG, with 1310nm and Monitor Port

The 40ch Mux Demux is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG technology with Gaussian shaped pass bands. By providing access up to forty 100GHz spaced channels in a 1U package, this unit maximizes the capacity of the C-band range. In conjunction with the transponders and amplifiers, the 40ch mux demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.

Product Details

Wavelength	40 channels C21-C60	Channel Spacing	100GHz (0.8nm)
1310nm Port Pass Band Width	1260nm~1360nm	Insertion Loss	≤ 5.0dB, 3.5dB typical (with connectors and adapters)
Center Wavelength Accuracy	±0.05nm	Channel Passband	±0.11nm
Insertion Loss @ 1% Mon	≤ 26dB (with connectors and adapters)	Insertion Loss @ 1310 port	≤ 1.5dB (with connectors and adapters)
Technology	AAWG (Gaussian)	Adjacent channel Isolation	≥ 25dB
Non-adjacent channel Isolation	≥ 29dB	Return Loss	≥ 40dB
Directivity	≥ 40dB	Polarization Dependent Loss	≤ 0.5dB
Polarization Mode Dispersion	≤ 0.5ps	Dimensions (HxWxD)	1.73"x17.1"x7.87" (44x432x200mm)
Operating Temperature	-5°C~+65°C	Storage Temperature	-40°C~+85°C

Quality Assurance

Excellent quality is the foundation of FLYPRO' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Adavantages

Keep In Stock

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High Stability

Product Highlights

Common size

Small size, easy to install and easy to use. Completely passive, no power supply, no cooling required. Fully compatible with all ITU-T DWDM optics.

A Rugged and Cost-Effective Designed DWDM Mux/Demux

Flexible support

Easy to fix and easy to install

Clear Coding for DWDM

Each channel is marked with band parameter for easy identification, ensuring fast and accurate installation.

Simple to Test and Maintenance

Taking just several seconds to complete all loss or power measurements and easy to interpret test results with minimal navigation.Fiber Optic Cleaning is a essential accessory to maintain and guarantee good quality of fiber optic connection.
